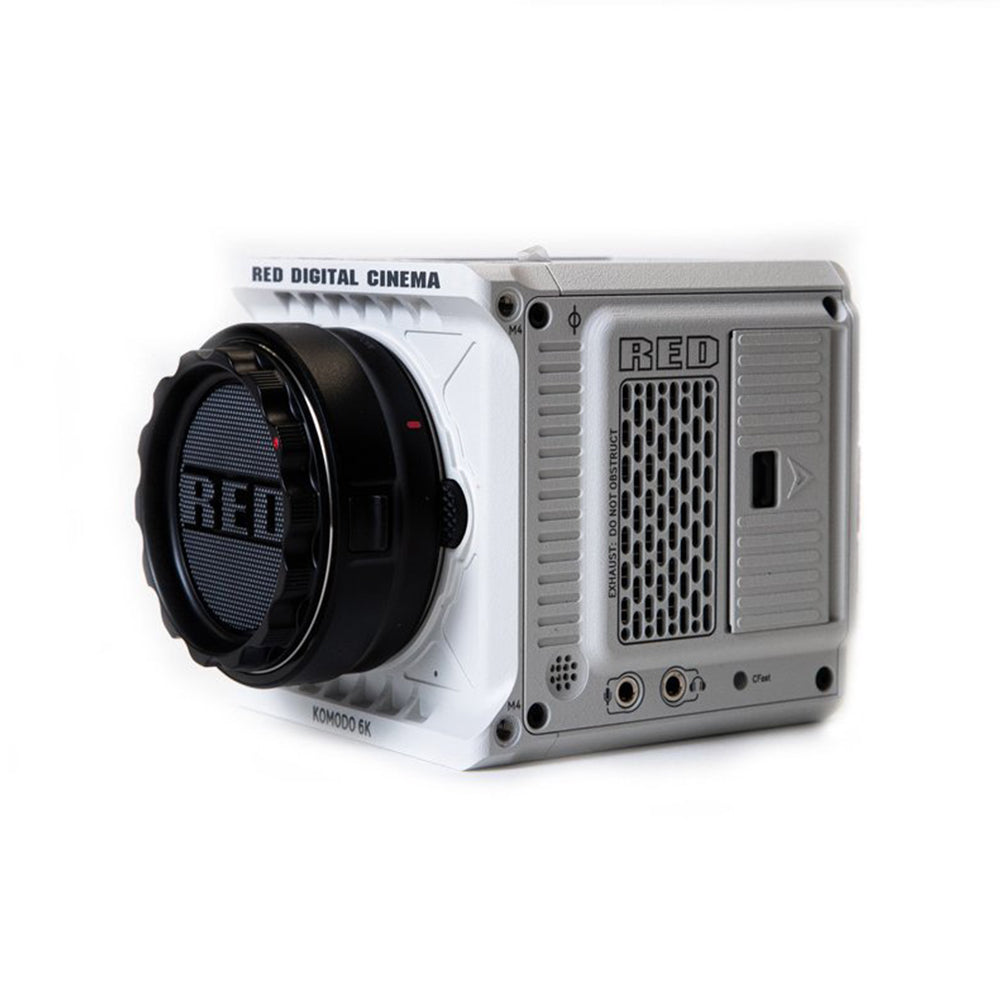

KOMODO® 6K is the latest breakthrough product in RED's long line of innovative image capture technology. The newest entrant into the RED line-up is a compact and highly powerful cinema camera. It features RED’s cinema grade image quality, colour science and sensor technology into a portable form factor so users can take it anywhere and adapt it to any shooting scenario. ​

The new sensor in KOMODO is a 6K S35 global shutter sensor that breaks new technical ground by eliminating the need to sacrifice dynamic range and meets the RED standard of unmatched imagery without any creative or technical compromises. KOMODO also features a built-in Canon RF mount allowing users the flexibility to use numerous different lens adapters, such as Canon EF, PL and Leica M mount. KOMODO also has a DC IN power port and can also be powered using two Canon BP style batteries.

In-Camera Language Support: English, Simplified Chinese, Japanese, German, Spanish, French​​

NOTE: The KOMODO 6K has an adaptable RF lens mount. KOMODO requires a lens mount adapter, i.e. RF to EF, RF to PL, in order to shoot.​ Canon Mount Adapter EF-EOS R included with camera.

Included

• KOMODO 6K Body​
• AC Power Adaptor 45W​
• Mini World Travel Adaptor Kit​
• RED Logo Sticker​
• KOMODO Information Card (incl. registration and support info)​
• Box with plastic / foam (standard minimalist markings)​
• Canon Mount Adapter EF-EOS R
• 1 Year Standard Warranty

SENSOR TYPE	KOMODO™ 19.9 MP Super 35mm Global Shutter CMOS
EFFECTIVE PIXELS	6144 x 3240
SENSOR SIZE	27.03 mm x 14.26 mm (Diagonal: 30.56mm)
DYNAMIC RANGE	16+ Stops
MOUNT TYPE	RF mount Accepts Canon RF mount-based lens adaptors for diverse lens choices Supports Canon EF with full electronic communication via compatible Canon RF mount adapters, and supports mechanically operated RF lenses (electronic control of Canon RF lenses not supported at this time) [1]
MAX DATA RATES	Up to 280 MB/s using RED Pro CFast or other qualified CFast 2.0 media cards [1]
REDCODE® RAW MAX FRAME RATES	40 fps at 6K 17:9 (6144 x 3240) 50 fps at 6K 2.4:1 (6144 x 2592) 48 fps at 5K 17:9 (5120 x 2700) 60 fps at 4K 17:9 (4096 x 2160) 120 fps at 2K 17:9 (2048 x 1080)
PLAYBACK FRAME RATES (PROJECT TIME BASE)	23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions
BEST AVAILABLE REDCODE® SETTINGS	REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 40 fps REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 60 fps REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 120 fps
REDCODE® RAW ACQUISITION FORMATS2	6K 17:9 (6144 x 3240), 2.4:1 and 16:9 5K 17:9 (5120 x 2700) 4K 17:9 (4096 x 2160) 2K 17:9 (2048 x 1080)
APPLE PRORES	4K (4096 × 2160) at ProRes 422 HQ and ProRes 422 up to 60 fps 2K (2048 × 1080) at ProRes 422 HQ and ProRes 422 up to 120 fps
CONSTRUCTION	Aluminum Alloy
WEIGHT	2.10 lbs (without body cap and Cfast card)
BATTERY TYPE	Two slots for BP-9XX series batteries
DC POWER INPUT	+7 to +17 V DC via the integrated 2-pin DC-IN port
Operating Temperature	0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE	–20°C to 50°C (–4°F to 122°F)
STORAGE RELATIVE HUMIDITY	0% to 85% non-condensing
COLOR MANAGEMENT	Image Processing Pipeline 2 (IPP2) Supports 33×33×33 3D LUTs Supports import of CDLs
AUDIO	Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz Additional dual channel via integrated 3.5mm audio jack, uncompressed, 24-bit 48 kHz
REMOTE CONTROL	Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector Genlock, Timecode-in, GPIO and Ctrl (RS232) via the integrated 9-pin EXT Port Wired control via KOMODO Link Adaptor, using USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing camera control and live MJPEG preview video feed
MONITOR OUTPUTS	Integrated 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes 12G-SDI: Up to 4096 x 2160 4:2:2 for 60p 6G-SDI: Up to 4096 x 2160 4:2:2 for 30p 3G-SDI: Up to 2048 x 1080 4:2:2 for 60p 1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 24p SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
MONITOR OPTIONS	Integrated 2.9" 1440x1440 touchscreen LCD with preview and camera control Wireless live preview video feed via 2.4Ghz/5Ghz WiFi for framing
RED CONTROL	Access full camera controls and live preview from iOS or Android devices. Available from the Apple App Store and Google Play Store (coming soon). RED Control works wirelessly or wired via the KOMODO Link Adaptor (sold separately).
